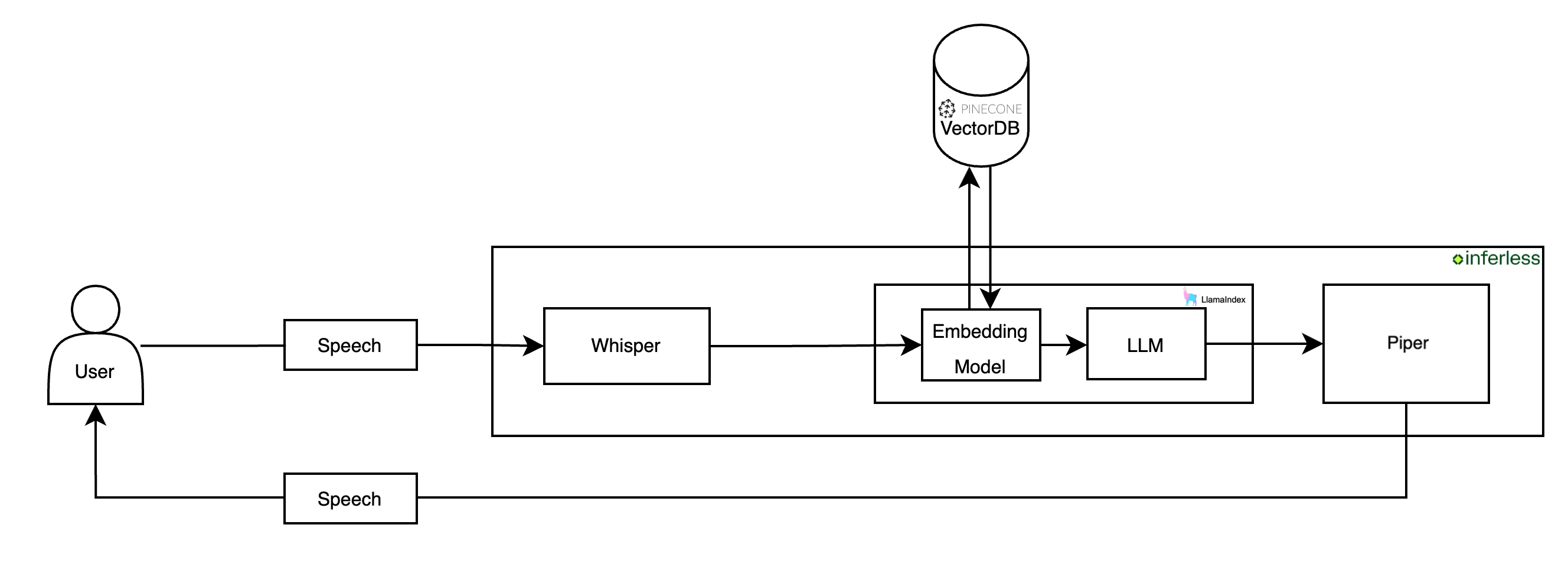

Key Components of the Application

In building this application, we’ll utilize these components:

  1. Dataset: We will use the dataset Twitter customer support exchanges to help the voicebot develop natural and effective conversational abilities, improving its response accuracy.
  2. Vector Database: We will use Pinecone will store embeddings of the dataset, aiding in the retrieval of relevant information to provide context to the language model.
  3. Embedding Model: We will utilize an embedding model bge-small-en-v1.5 to convert textual data from our dataset into numerical vectors. By storing these vectors in a Pinecone, our bot can quickly access relevant information to generate accurate and contextually appropriate responses.
  4. Automatic Speech Recognition Model: We will use the whisper-large-v3 to convert spoken words into text.
  5. Text Generation Model: The Hermes-2-Pro-Llama-3-8B will generate responses to user queries.
  6. Text-to-Audio Model: Piper will convert the generated text responses into speech for a seamless conversational experience.

​
Crafting Your Application

This tutorial guides you through creating a customer support voicebot where users can speak their queries and the bot responds with spoken solutions. It leverages technologies such as Pinecone, Faster-Whisper, LlamaIndex, Piper, and Inferless.

​
Document Processing and Storage in Pinecone

To process and store documents in Pinecone, we download and prepare the dataset, then load it using a SimpleDirectoryReader. We initialize Pinecone and create an index to store the document embeddings. These embeddings enable efficient retrieval and querying, providing relevant context for the language model in the application.

​
Core Development Steps

​
Speech-to-Speech Generation

  • Objective: Capture user voice input, transcribe it to text, generate the text response, and convert it back to speech.
  • Action: Implement a Python class (InferlessPythonModel) to handle the entire speech-to-speech process, including voice input handling, model integration, and audio response generation.
import os
import time
import nltk
import io
import base64
import numpy as np
import pandas as pd
import requests
from llama_index.core import ServiceContext, SimpleDirectoryReader, GPTVectorStoreIndex, PromptHelper, VectorStoreIndex, KeywordTableIndex, StorageContext, load_index_from_storage
from llama_index.llms.vllm import Vllm
from llama_index.embeddings.huggingface import HuggingFaceEmbedding
from llama_index.core import Settings
from transformers import AutoTokenizer
from llama_index.vector_stores.pinecone import PineconeVectorStore
from pinecone import Pinecone, ServerlessSpec
from faster_whisper import WhisperModel
import wave
from piper.voice import PiperVoice

class InferlessPythonModel:
    def initialize(self):
        self.audio_file = "output.mp3"
        # Initialize tokenizer
        self.tokenizer = AutoTokenizer.from_pretrained('NousResearch/Hermes-2-Pro-Llama-3-8B', trust_remote_code=True)

        # Initialize LLM
        self.llm = Vllm(
            model="NousResearch/Hermes-2-Pro-Llama-3-8B",
            max_new_tokens=256,
            top_k=10,
            top_p=0.95,
            temperature=0.1,
            vllm_kwargs={"swap_space": 1, "gpu_memory_utilization": 0.9},
        )

        # Initialize embedding model
        self.embed_model = HuggingFaceEmbedding(model_name="BAAI/bge-small-en-v1.5")

        # Configure settings
        Settings.llm = self.llm
        Settings.embed_model = self.embed_model
        Settings.chunk_size = 1024

        #Load the Dataset to Pinecone
        self.load_dataset()

        # Initialize Pinecone
        self.pc = Pinecone(api_key="153e3e06-a636-4925-bd3f-82b3349d59eb")
        self.index = self.pc.Index("document")

        # Initialize vector store and query engine
        self.vector_store = PineconeVectorStore(pinecone_index=self.index)
        self.index = GPTVectorStoreIndex.from_vector_store(self.vector_store)
        self.query_engine = self.index.as_query_engine()

        # Initialize Whisper model
        self.model_size = "large-v3"
        self.model_whisper = WhisperModel(self.model_size, device="cuda", compute_type="float16")

        # Ensure the onnx_models directory exists
        self.model_dir = "onnx_models"
        os.makedirs(self.model_dir, exist_ok=True)

        # Download the Piper voice model if it doesn't exist
        self.model_path = os.path.join(self.model_dir, "en_US-lessac-medium.onnx")
        self.model_json_path = os.path.join(self.model_dir, "en_US-lessac-medium.onnx.json")
        self.download_model()

        # Initialize Piper voice model
        self.voice = PiperVoice.load(self.model_path, use_cuda=True)

    def base64_to_mp3(self, base64_data, output_file_path):
        # Convert base64 audio data to mp3 file
        mp3_data = base64.b64decode(base64_data)
        with open(output_file_path, "wb") as mp3_file:
            mp3_file.write(mp3_data)

    def load_dataset(self):
        # Setup dataset directory and file path
        dataset_dir = "dataset"
        os.makedirs(dataset_dir, exist_ok=True)
        dataset_path = os.path.join(dataset_dir, "SpotifyCustomerSupport.txt")

        # Download dataset if it doesn't exist
        if not os.path.exists(dataset_path):
            url = "https://github.com/inferless/Customer-Service-Voicebot/raw/main/SpotifyCustomerSupport.txt"
            response = requests.get(url)
            response.raise_for_status()
            with open(dataset_path, 'wb') as f:
                f.write(response.content)

            # Load documents and initialize Pinecone
            documents = SimpleDirectoryReader(dataset_dir).load_data()
            pc = Pinecone(api_key="153e3e06-a636-4925-bd3f-82b3349d59eb")
            pc.create_index(
                name="document",
                dimension=384,
                metric="euclidean",
                spec=ServerlessSpec(cloud="aws", region="us-east-1"),
            )
            index = pc.Index("document")

            # Setup vector store and storage context
            vector_store = PineconeVectorStore(pinecone_index=index)
            storage_context = StorageContext.from_defaults(vector_store=vector_store)
            index = VectorStoreIndex.from_documents(documents, storage_context=storage_context)

    def download_model(self):
        if not os.path.exists(self.model_path):
            url_list = ["https://huggingface.co/rhasspy/piper-voices/resolve/main/en/en_US/lessac/medium/en_US-lessac-medium.onnx"
            , "https://huggingface.co/rhasspy/piper-voices/resolve/main/en/en_US/lessac/medium/en_US-lessac-medium.onnx.json"]
            download_items = [self.model_path,self.model_json_path]
            for idx in range(len(url_list)):
                response = requests.get(url_list[idx])
                response.raise_for_status()  # Check if the request was successful
                with open(download_items[idx], 'wb') as f:
                    f.write(response.content)
                print(f"Downloaded {download_items[idx]}")

    def infer(self, inputs):
        audio_data = inputs["audio_base64"]

        #Convert the audio from base64 to .mp3
        self.base64_to_mp3(audio_data, self.audio_file)

        # Transcribe audio file
        segments, info = self.model_whisper.transcribe(self.audio_file, beam_size=5)
        user_text = ''.join([segment.text for segment in segments])

        # Prepare messages for chat template
        messages = [
            {"role": "system", "content": "You are Customer Support Assistant."},
            {"role": "user", "content": user_text}
        ]

        # Generate input for the LLM
        gen_input = self.tokenizer.apply_chat_template(messages, return_tensors="pt", tokenize=False)

        # Query the vector store
        response = self.query_engine.query(gen_input)

        # Synthesize response to audio
        byte_stream = io.BytesIO()
        with wave.open(byte_stream, "wb") as wav_file:
            # Set WAV file parameters
            wav_file.setnchannels(1)  # Mono
            wav_file.setsampwidth(2)  # 2 bytes per sample
            wav_file.setframerate(22050)  # Sample rate

            # Synthesize the speech and write to byte stream
            self.voice.synthesize(response.response, wav_file)

        # Get the byte stream's content
        audio_bytes = byte_stream.getvalue()

        # Encode audio bytes to Base64 string
        audio_base64 = base64.b64encode(audio_bytes).decode('utf-8')

        return {"generated_audio_base64": audio_base64,
               "question":user_text,
               "answer":response.response}

    def finalize(self):
        # Clear GPU memory (implementation depends on the framework used)
        pass

​
Setting up the Environment

Dependencies:

  • Objective: Ensure all necessary libraries are installed.
  • Action: Run the command below to install dependencies:
pip install llama-index==0.10.36 llama-index-core==0.10.36 llama-index-embeddings-huggingface==0.2.0 llama-index-llms-vllm==0.1.7 llama-index-vector-stores-pinecone==0.1.7 llamaindex-py-client==0.1.19 vllm==0.4.2 piper-tts==1.2.0 onnxruntime-gpu==1.17.1 faster-whisper==1.0.2 nltk==3.8.1 transformers==4.40.2 pinecone-client==3.2.2

This command ensures your environment has all the tools required for the application.

​
Deploying Your Model with Inferless CLI

  1. Run the following command to initialize your model:
inferless init
  1. Upload Custom Runtime: Use the following command to upload your custom runtime.
inferless runtime upload

Here’s the custom runtime for the application:

build:
  python_packages:
    - "llama-index==0.10.36"
    - "llama-index-core==0.10.36"
    - "llama-index-embeddings-huggingface==0.2.0"
    - "llama-index-llms-vllm==0.1.7"
    - "llama-index-vector-stores-pinecone==0.1.7"
    - "llamaindex-py-client==0.1.19"
    - "vllm==0.4.2"
    - "piper-tts==1.2.0"
    - "onnxruntime-gpu==1.17.1"
    - "faster-whisper==1.0.2"
    - "nltk==3.8.1"
    - "transformers==4.40.2"
    - "pinecone-client==3.2.2"
  1. Deploy Model: Execute inferless deploy to deploy and monitor the build logs on Inferless.
inferless deploy

​
Demo of the Customer Service Voicebot.

​
Alternative Deployment Method

Inferless also supports a user-friendly UI for model deployment, catering to users at all skill levels. Refer to Inferless’s documentation for guidance on UI-based deployment.

​
Choosing Inferless for Deployment

Deploying your Customer Service Voicebot application with Inferless offers compelling advantages, making your development journey smoother and more cost-effective. Here’s why Inferless is the go-to choice:

  1. Ease of Use: Forget the complexities of infrastructure management. With Inferless, you simply bring your model, and within minutes, you have a working endpoint. Deployment is hassle-free, without the need for in-depth knowledge of scaling or infrastructure maintenance.
  2. Cold-start Times: Inferless’s unique load balancing ensures faster cold-starts. Expect around 2.87 seconds to process each queries, significantly faster than many traditional platforms.
  3. Cost Efficiency: Inferless optimizes resource utilization, translating to lower operational costs. Here’s a simplified cost comparison:

​
Scenario 1

You are looking to deploy a Customer Service Voicebot application for processing 100 queries.

Parameters:

  • Total number of queries: 100 daily.
  • Inference Time: All models are hypothetically deployed on A100 80GB, taking 2.87 seconds of processing time and a cold start overhead of 24.01 seconds.
  • Scale Down Timeout: Uniformly 60 seconds across all platforms, except Hugging Face, which requires a minimum of 15 minutes. This is assumed to happen 100 times a day.

Key Computations:

  1. Inference Duration:
    Processing 100 queries and each takes 2.87 seconds
    Total: 100 x 2.87 = 287 seconds (or approximately 0.08 hours)
  2. Idle Timeout Duration:
    Post-processing idle time before scaling down: (60 seconds - 2.87 seconds) x 100 = 5713 seconds (or 1.59 hours approximately)
  3. Cold Start Overhead:
    Total: 100 x 24.01 = 2401 seconds (or 0.67 hours approximately)

Total Billable Hours with Inferless: 0.08 (inference duration) + 1.59 (idle time) + 0.67 (cold start overhead) = 2.34 hours
Total Billable Hours with Inferless: 2.34 hours

​
Scenario 2

You are looking to deploy a Customer Service Voicebot application for processing 1000 queries per day.

Key Computations:

  1. Inference Duration:
    Processing 1000 queries and each takes 2.87 seconds Total: 1000 x 2.87 = 2870 seconds (or approximately 0.8 hours)‍
  2. Idle Timeout Duration:
    Post-processing idle time before scaling down: (60 seconds - 2.87 seconds) x 100 = 5713 seconds (or 1.59 hours approximately)
  3. Cold Start Overhead:
    Total: 100 x 24.01 = 2401 seconds (or 0.67 hours approximately)

Total Billable Hours with Inferless: 0.8 (inference duration) + 1.59 (idle time) + 0.67 (cold start overhead) = 3.06 hours
Total Billable Hours with Inferless: 3.06 hours

ScenariosOn-Demand CostServerless Cost
100 requests/day$28.8 (24 hours billed at $1.22/hour)$2.85 (2.34 hours billed at $1.22/hour)
1000 requests/day$28.8 (24 hours billed at $1.22/hour)$3.73 (3.06 hours billed at $1.22/hour)

By opting for Inferless, you can achieve up to 90.10% cost savings.

Please note that we have utilized the A100(80 GB) GPU for model benchmarking purposes, while for pricing comparison, we referenced the A10G GPU price from both platforms. This is due to the unavailability of the A100 GPU in SageMaker.

Also, the above analysis is based on a smaller-scale scenario for demonstration purposes. Should the scale increase tenfold, traditional cloud services might require maintaining 2-4 GPUs constantly active to manage peak loads efficiently. In contrast, Inferless, with its dynamic scaling capabilities, adeptly adjusts to fluctuating demand without the need for continuously running hardware.

​
Conclusion

By following this guide, you’re now equipped to build and deploy a sophisticated Customer Service Voicebot application. This tutorial showcases the seamless integration of advanced technologies, emphasizing the practical application of creating cost-effective solutions.
